HR-45E 电动表面洛氏硬度计
InstructionHR-45E is an economical and practical motorized superficial Rockwell hardness tester. Simple, reliable and easy to check hardness testing value. Popular in heat treat facility, tool room, workshop, metallurgical & metallographilaboratory and inspection lab.
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Easy Operation & Reliability

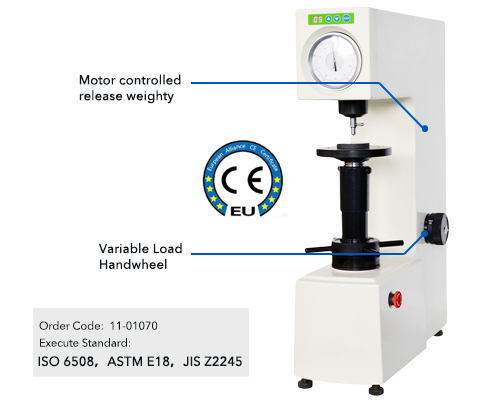

Motor controlled release weight, test force transformation is obtained by rotation of variable load handwheel Automatic loading and unloading test force mechanism, selected dwelling time, with high sensitivity and stability Compatible with most standard Rockwell hardness testers, including HRA, HRB, HRC, HRD, etc.Technical Specification| HR-45E | |
| Minor Load | 3 kgf (29.42 N) |
| Major Load | 15 kgf (147.1 N), 30 kgf (294.2 N), 45 kgf (441.3 N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5 HR |
| Dwell Time | 2-60 s |
| Sample Height | 0-185 mm |
| Throat Depth | 165 mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 520 W ×215 D ×700 H mm， Packing: 650 W ×370 D ×950 H mm |
| Weight |
Net Weight: 73 kg Gross Weight: 100 kg |
