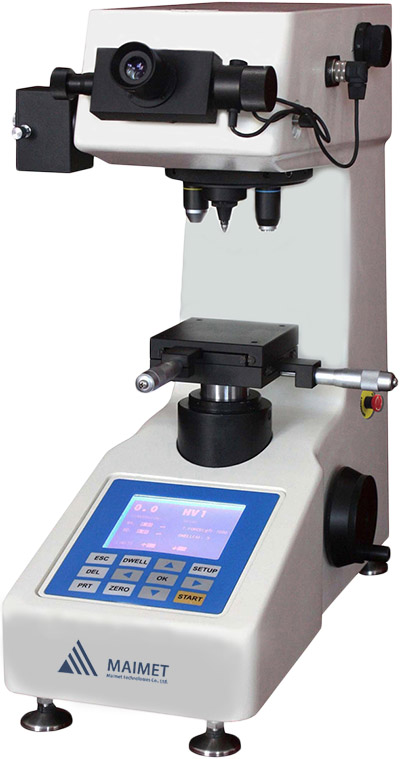

HVS-1000M Digital Micro Vickers Hardness Tester
Main Function
HVS-1000M Digital Micro Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. With a novel and pleasing appearance, the internal structure is mainly made by stainless steel parts, has better performance. It can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. With the up and down limit alarm function, test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.
Application Range
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Specification
|
Model |
HVS-1000M |
|
|
Test Force |
gf |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
|
N |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
|
|
Test Range |
1HV~2967HV |
|
|
Hardness Resolution |
0.1HV |
|
|
Test Mode |
HV/HK |
|
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
|
Shifting between Objective and Indenter |
Automatic Shifting |
|
|
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
|
Data Output |
Built-in Printer，RS232 Interface |
|
|
Hardness Reading |
LCD Display, Data can be saved |
|
|
Eyepiece |
10× Digital Measuring Eyepiece |
|
|
Objective |
10× (Observe)，40× (Measure) |
|
|
Total Magnification |
100×，400× |
|
|
Effective Field of View |
200μm |
|
|
Min. Measuring Unit |
0.02μm |
|
|
Dwell Time |
0~95s |
|
|
Light Source |
Halogen Lamp |
|
|
X-Y Test Table |
Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm |
|
|
Max. Height of Specimen |
90mm |
|
|
Throat |
100mm |
|
|
Power Supply |
AC220V，50Hz |
|
|
Execute Standard |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
|
|
Dimension |
495×305×550mm， Packing Dimension: 600×360×800mm |
|
|
Weight |
Net Weight: 35kg，Gross Weight: 44kg |
|
