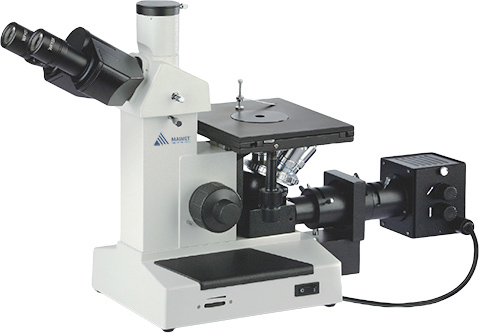

IMET-M100 倒置金相显微镜
Description
IMET-M100 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Specification
| Item | IMET-M100 | |
| Eyepiece | Wide field WF10X (field number Φ18mm) | |
|
Plan achromatic objective |
PL L10X/0.25 | |
| PL L20X/0.40 (Spring) | ||
| PL L40X/0.60 (Spring) | ||
| PL 100X/1.25 (Oil) ( Spring) | ||
| Eyepiece tube | Inclination 45° and interpupillary distance: 53~75mm. | |
| Focus system | Coaxial coarse/fine focus with tension adjustable and low stop, minimum division of fine focusing: 2 um. | |
| Nosepiece | Quadruple (Backward ball bearing inner locating) | |
| Stage | Mechanical stage, size: 180mmX150mm and moving range : 15mmX15mm. | |
| Rotundity and rotatable stage size: maximal measurement: Φ67.5mm and minimal clear aperture: Φ12mm. | ||
| Illumination system | 6V20W halogen lamp, brightness adjustable. | |
| Integrated field diaphragm , aperture diaphragm and system polarizer. | ||
| Equipped with flashboard frosted glass and yellow ,green and blue filters | ||
Optional Accessory
| Item | IMET-M100 | |
| Eyepiece | Dividing eyepiece (Φ18mm) | |
| Objective | 50X 60X 80X 100X (dry) | |
| CCD adapter | 0.4X 0.5X 1X 0.5X (With dividing) | |
| Polarizing device | Flashboard ploarizer can be rotated from 0~90° | |
| Puller analyzer can be swithched freely. | ||
| Camera | USB output: 5.0M/10.0M/16.0Mpixell | |
| VIDEO output: 380/520 TV Line | ||
| Digital camera adapter | CANON (EF) NIKON ( F) | |
