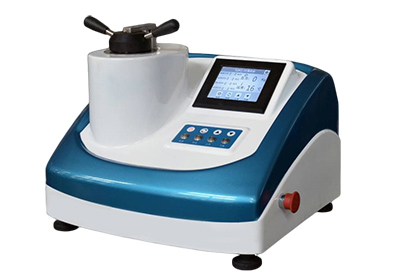

AutoPress-30 Automatic Hot Mounting Press
AutoPress-30 is automatic single head mounting press with advanced hydraulic water-cooling system. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. It adopts the touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, the parameter can be saved, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and phenolic powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.
Main Parameters
| Mold Diameter | Φ22mm, Φ30mm, Φ45mm (choose one) |
| Mold Height | 140mm, Effective height 85mm, Effective travel 120 mm; Can mount two samples at one time. |
| Heating Power | Ф22mm,1KW; Ф30mm,1.2KW; Ф45mm, 1.6KW |
| Pressure Setting Range | 50~200bar (The default is 150bar, same to 15Mpa, 150kgf) |
| Temperature Setting Range | 50~180℃ (The default is 120℃.) |
| Heating Time | 1~7 min (The default is 4min30s.) |
| Holding Time | 30s~7 min (The default is 1min.) |
| Cooling Time | 1~30min (The default is 2min.) |
| Cooling Method | Automatic water cooling |
| Power Supply | 220V, 50Hz |
| Dimensions | 530×510×450mm |
| Weight | 60kg |
