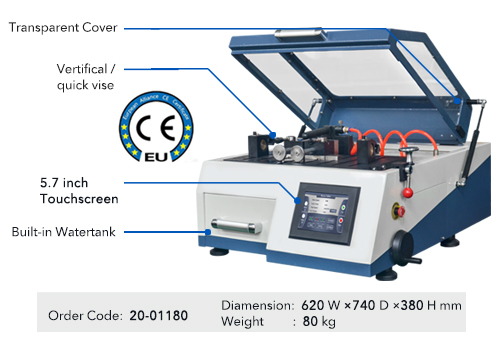

Micro-180A 自动精密切割机
InstructionMicro-180A is a manual/automatic precision cutter, it can precisely cuts most kinds of materials, widely used in metallographic sample preparation and analysis laboratories, and is an necessary equipment for failure analysis.
Suitable for cutting most material including brittle or ductile metals, composites, electronic devices, plastics, cements, laminates, and biomaterials.
Easy Operation & Display
5.7-inch high-sensitivity touch screen display control, easy to set parametersVersatility
Vertical / quick vises for different shapes of specimens Manual/automatic cutting mode, more efficient for cut different materialsReliability Safety
Enclosed work area & open cover stop protection, safer operation Overheating and overcurrent protection Built-in cooling water tank to prevent the sample from being damaged by overheatingTechnical Specification| Item | Spec. |
| Cutting Feedrate | 1-36 mm/min |
| Disc Dimension | Φ 180*1.0*22 mm |
| Disc Speed | 500-3000 rpm |
| Cutting Capacity | Φ 30 mm |
| Motor Power | 1.2 KW |
| T-Table Dimension | 245*415 mm, 8 mm T Slot |
| Maximum Movement |
Spindle 140mm Platform 230mm |
| Power Supply | 110V 60 Hz / 220V 50 Hz |
