Mega-250Z 手动砂轮切割机

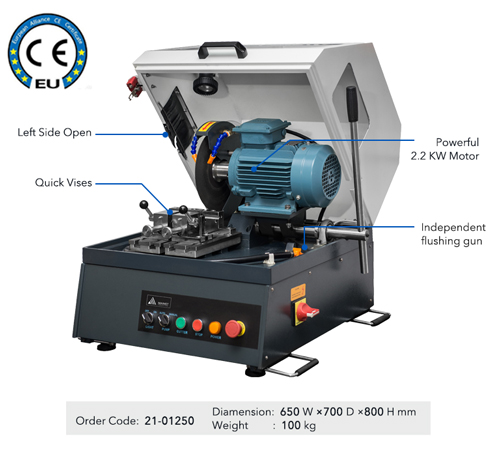

InstructionMega-250Z is a manual abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.
Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.
Versatility
Quick vises for different shapes of specimens Left side cover opening for long specimen cuttingEasy Operation & Display
Manual chop cutting, convenient to cutting samples Built-in LED lighting , observe sample cutting more clearly Independent flushing gun, easier to clean debrisReliability Safety
2.2KW quality motor, easily cut medium or high-strength materials Enclosed work area & open cover stop protection, safer operation External cooling water tank to prevent the sample from being damaged by overheatingTechnical Specification| Item | Spec. |
| Cutting | Manual, Chop cutting |
| Disc Dimension | Φ 250*1.5*32 mm |
| Cutting Capacity | 75*75 mm |
| Disc Speed | 2800 rpm |
| Motor Power | 2.2 KW |
| T-Table Dimension | 217*232 mm, 12 mm T Slot |
| Water Tank | 60 L, 25 L/min |
| Power Supply | 380V 50 Hz |
