Instruction

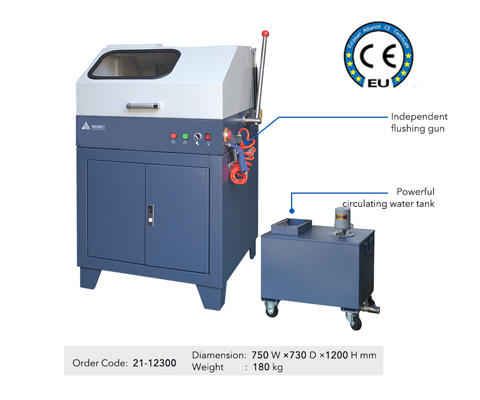

       Mega-300Z is a manual abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.

      Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.

     Versatility
  Quick vises for different shapes of specimens
  Left side cover opening for long specimen cutting

     Easy Operation & Display
  Manual chop cutting, convenient to cutting samples
  Built-in LED lighting , observe sample cutting more clearly
  Independent flushing gun, easier to clean debris


     Reliability Safety
  3 KW quality motor, easily cut medium or high-strength materials
  Enclosed work area & open cover stop protection, safer operation
  External cooling water tank to prevent the sample from being damaged by overheating

Technical Specification


Item	Spec.
Cutting	Manual, Chop cutting
Disc Dimension	Φ 300*2.0*32 mm
Cutting Capacity	85*85 mm
Disc Speed	2800 rpm
Motor Power	3 KW
T-Table Dimension	204*240 mm, 12 mm T Slot
Water Tank	60 L, 25 L/min
Power Supply	380V 50 Hz
